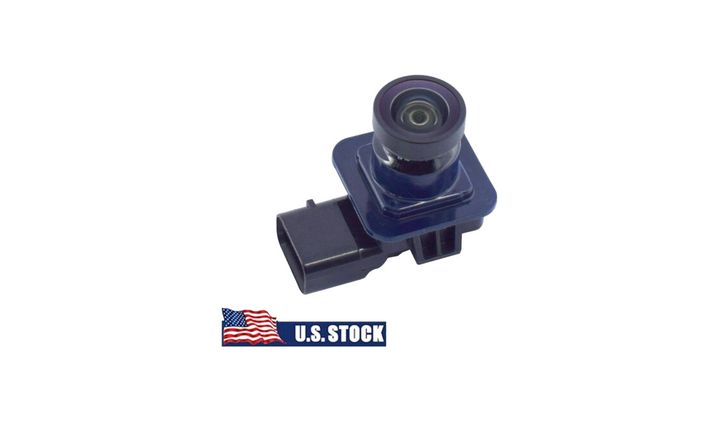

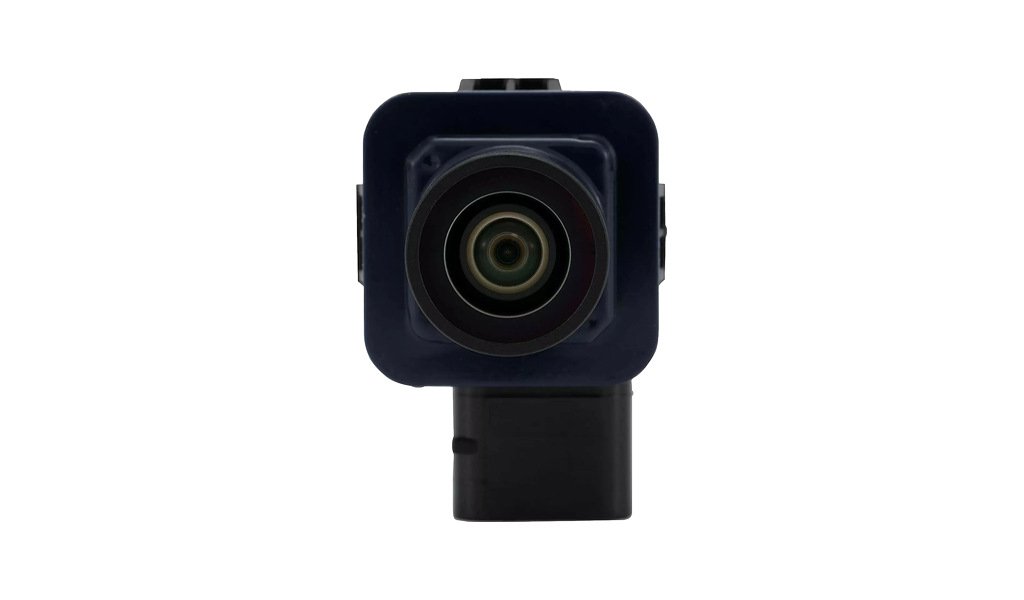

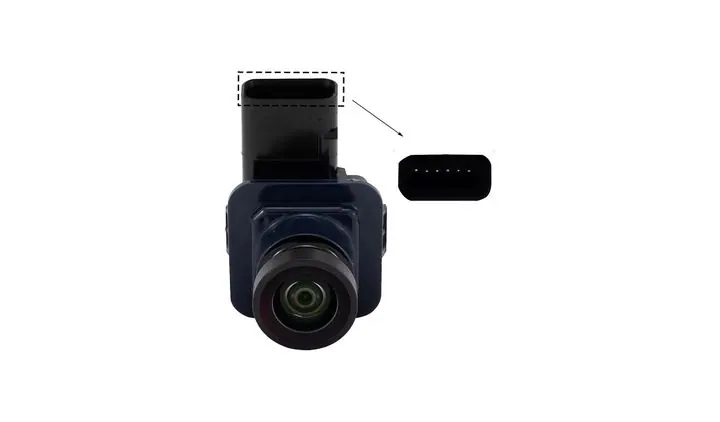

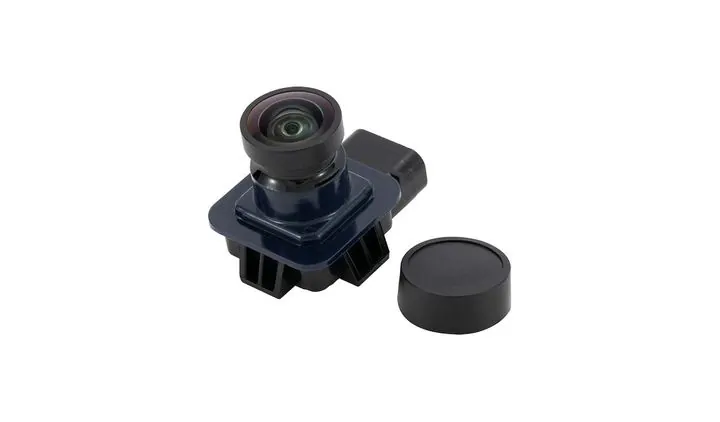

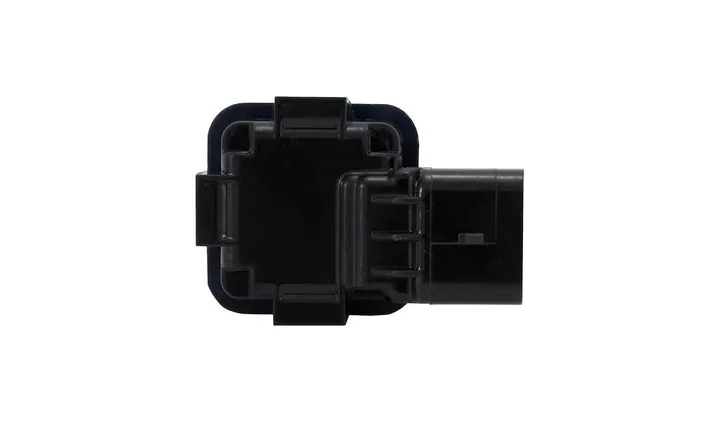

Main image and detail shots of the ES7Z-19G490.
ES7Z-19G490 Ford Mondeo/Fusion factory rearview camera (2013-2018)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
ES7Z-19G490 datasheet — full specification, ordering notes and installation guidance as a PDF (200 KB). Open it here or ask us to email it with your quotation.
Key features
- [It can be used if the OE is matched] OE: ES7Z-19G490 (same family as DS7Z-19G490-A) | Model: Ford Mondeo / Fusion 2013-2018 (parameter.txt in this directory is written as 2013-2016, and the OE cross-reference list is written as 2013-2018. Press OE to review before placing an order) | Location: Rear view reversing camera. Please provide the customer with factory camera photos for verification again
- Ford Mondeo/Fusion factory rearview camera, OE ES7Z-19G490 (similar to DS7Z-19G490-A)
- Sensor: 1/4" On-Semi (USA) CMOS active pixel array, Nidec (Japan) glass + plastic lens
- Minimum illumination 0.1Lux, effective pixels 728×582, 600 TV lines
- Viewing angle 170°, standard NTSC / PAL, electronic shutter 1/50~1/100,000 seconds
- Waterproof to IP68, power supply DC 6~12V
- The factory harness plug is connected, no wire cutting, the appearance is matches the factory part
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the year and model first: the parameter.txt of this catalog is written as 2013-2016, and the company’s OE cross-reference list is written as Mondeo 2013-2018. Check according to the OE number
- Ask the customer for photos of the factory camera — front, back, plug, bracket and the OE label on the housing — and check them against ours one by one.
- Check that the OE number ES7Z-19G490 / DS7Z-19G490-A is exactly the same
- There is also a "Ford Mustang ES7Z-19G490" folder in this catalog. The part number is written as Mustang, which conflicts with the Mondeo caliber in the OE cross-reference list. It must be checked before quoting
- Confirm quantity, packaging and printing.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Disconnect the battery negative terminal before installation and keep the circuit unpowered while working.
- When removing original parts, protect the clips, seals and plugs — do not force them.
- After fitting, check the clips are fully seated and the seal is compressed so water cannot seep in.
- Power up and check the reversing image and the factory guide lines work correctly.
- When washing, do not hold a pressure washer directly on the camera or connector.
- Keep the original parts you removed.
