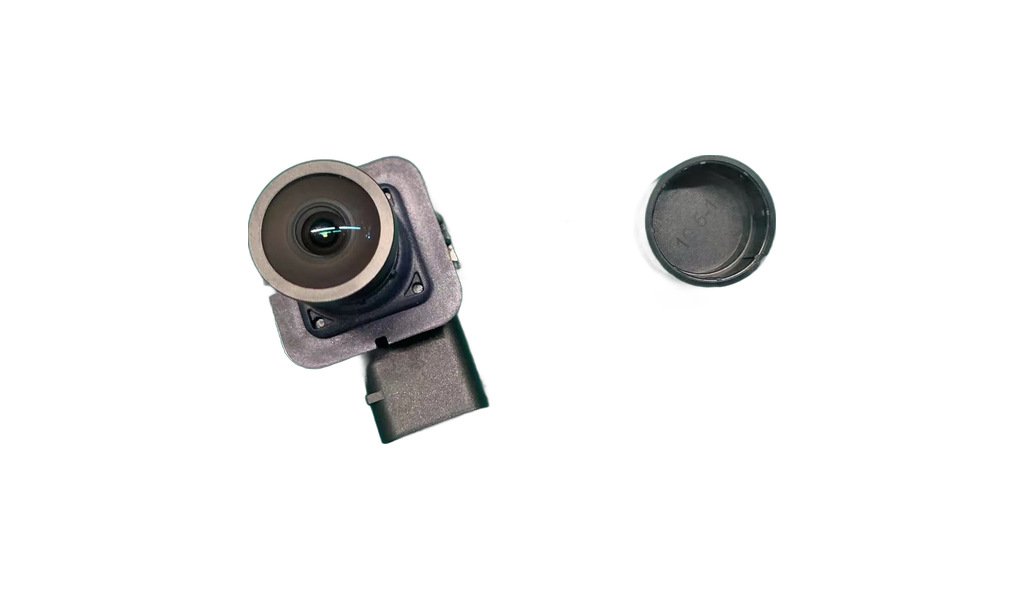

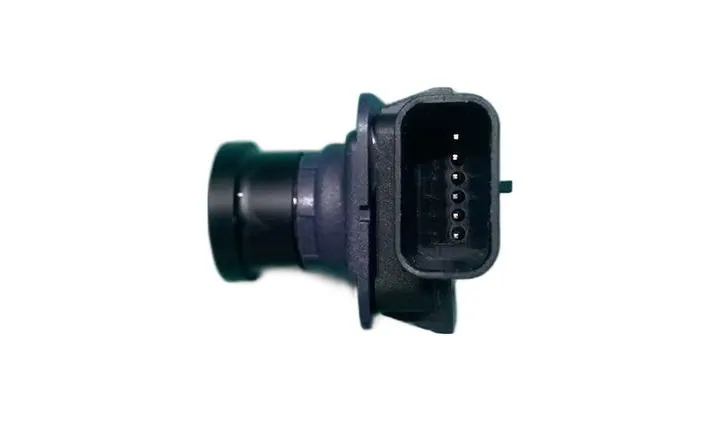

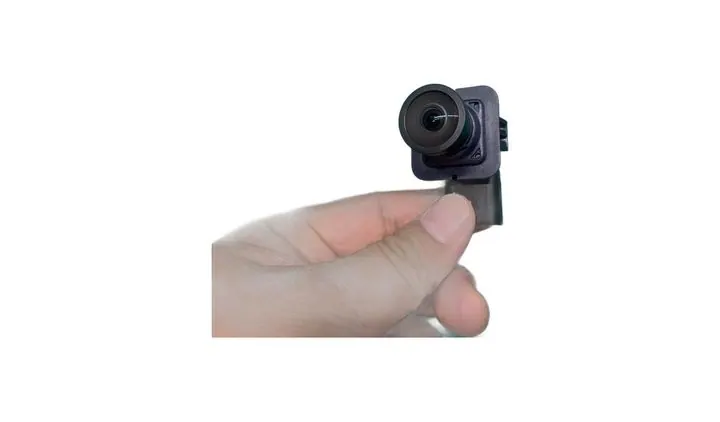

Main image and detail shots of the EJ5Z19G490A.
EJ5Z19G490A Ford Escape factory rear view camera (2013-2017)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
EJ5Z19G490A datasheet — full specification, ordering notes and installation guidance as a PDF (431 KB). Open it here or ask us to email it with your quotation.
Key features
- [It can be used if the OE is matched] OE: EJ5Z19G490A (same as EJ5Z-19G490-A) | Model: Ford Escape (the OE cross-reference list line is written as Maverick 2015-2017, the folder in this catalog is written as Escape 2013-2017, click OE to review before placing an order) | Location: Rearview reversing camera. Please provide the customer with factory camera photos for verification again
- Ford factory rear view camera, OE EJ5Z19G490A / EJ5Z-19G490-A
- Common specifications for US series: 1/4" CMOS active pixel array, Nidec (Japan) glass + plastic lens
- Minimum illumination 0.1Lux, effective pixels 728×582, 600 TV lines
- Viewing angle 170°, standard NTSC / PAL, electronic shutter 1/50~1/100,000 seconds
- Waterproof to IP68, power supply DC 6~12V
- The factory harness plug is connected, no wire cutting, the appearance is matches the factory part
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- This folder has the same part number as "EJ5Z-19G490-A". It is recommended to merge them into one product file to avoid repeated quotations
- Confirm the model size first: The company’s OE cross-reference list lists the part number as Maverick 2015-2017, and the folder in this catalog writes Escape 2013-2017. It must be reviewed according to the OE number
- Ask the customer for photos of the factory camera — front, back, plug, bracket and the OE label on the housing — and check them against ours one by one.
- Check that the OE number EJ5Z19G490A is exactly the same
- Confirm quantity, packaging and printing.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Disconnect the battery negative terminal before installation and keep the circuit unpowered while working.
- When removing original parts, protect the clips, seals and plugs — do not force them.
- After fitting, check the clips are fully seated and the seal is compressed so water cannot seep in.
- Power up and check the reversing image and the factory guide lines work correctly.
- When washing, do not hold a pressure washer directly on the camera or connector.
- Keep the original parts you removed.
