Main image and detail shots of the EG1Z-19G490.

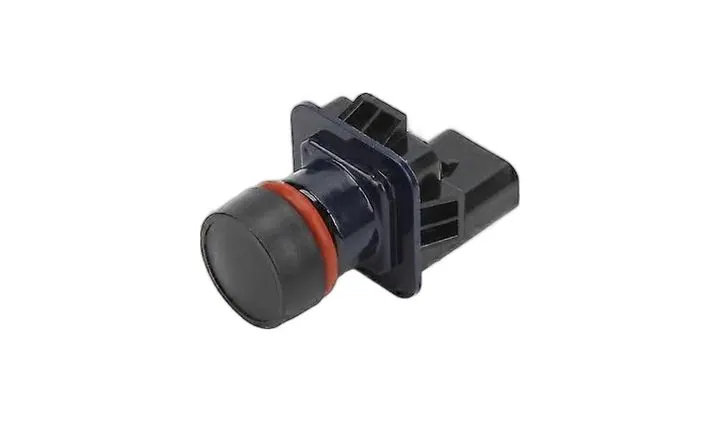

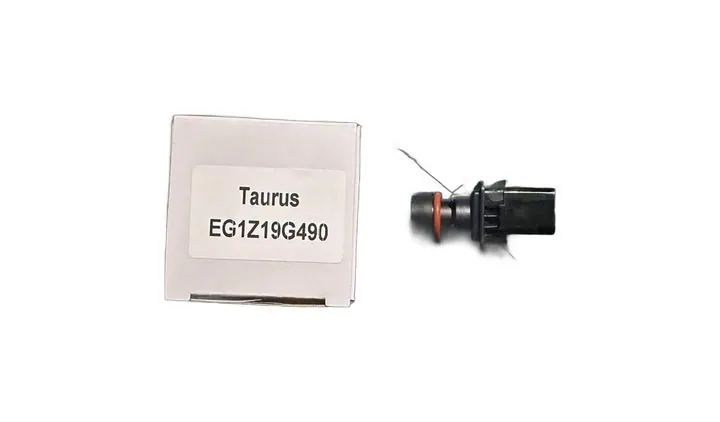

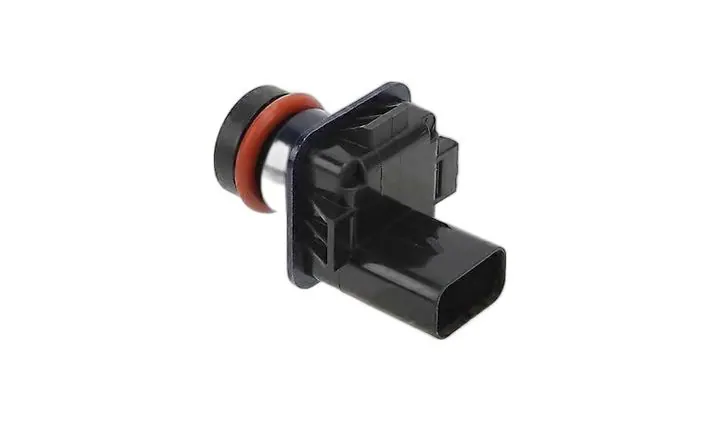

EG1Z-19G490 Ford Taurus factory rearview camera (2013-2019)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
EG1Z-19G490 datasheet — full specification, ordering notes and installation guidance as a PDF (234 KB). Open it here or ask us to email it with your quotation.
Key features
- [It can be used as soon as the OE is matched] OE: EG1Z-19G490 | Model: Ford Taurus 2013-2019 (2.0L EcoBoost / 3.5L V6, SE / SEL / Limited / SHO) | Location: Rear view reversing camera. Please provide the customer with factory camera photos for verification again
- Ford Taurus factory rearview camera, OE EG1Z-19G490, 2013-2019
- The catalog contains a fit list (fit car model.txt) organized by model year/engine/configuration, which can be checked item by item
- Common specifications for US series: 1/4" CMOS active pixel array, Nidec (Japan) glass + plastic lens
- Minimum illumination 0.1Lux, effective pixels 728×582, 600 TV lines
- Viewing angle 170°, standard NTSC / PAL, electronic shutter 1/50~1/100,000 seconds
- Waterproof to IP68, power supply DC 6~12V
- The factory harness plug is connected, no wire cutting, the appearance is matches the factory part
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Ask the customer for photos of the factory camera — front, back, plug, bracket and the OE label on the housing — and check them against ours one by one.
- Check that the OE number EG1Z-19G490 is completely consistent (there is another line in the OE cross-reference list EG1Z-19G490 Taurus 2015-2019, pay attention to the year and caliber)
- Use fit car model.txt in the catalog to check the year, engine and configuration (2.0T / 3.5L, AWD / FWD, SE / SEL / Limited / SHO)
- Confirm the camera position — reversing view, or which channel of the 360 system.
- Confirm quantity, packaging and printing.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Disconnect the battery negative terminal before installation and keep the circuit unpowered while working.
- When removing original parts, protect the clips, seals and plugs — do not force them.
- After fitting, check the clips are fully seated and the seal is compressed so water cannot seep in.
- Power on and test whether the rear view image and the factory dynamic auxiliary line are normal
- When washing, do not hold a pressure washer directly on the camera or connector.
- Keep the original parts you removed.
