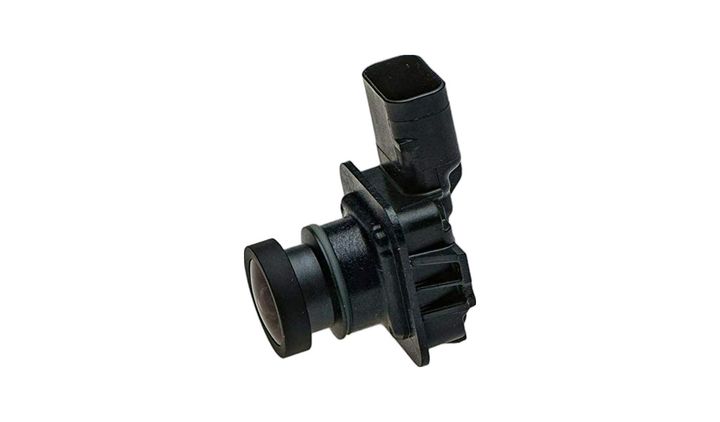

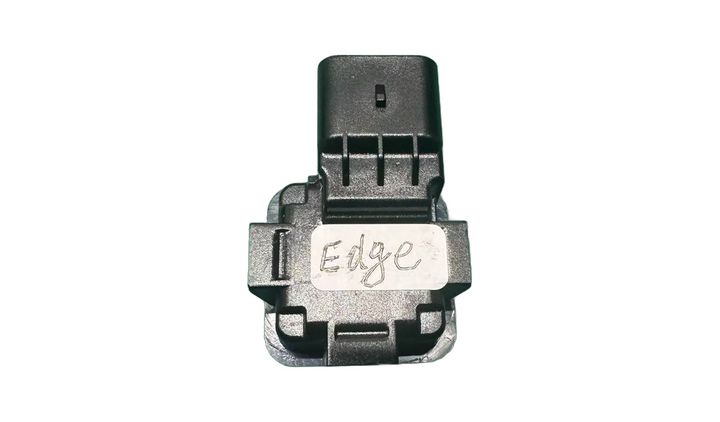

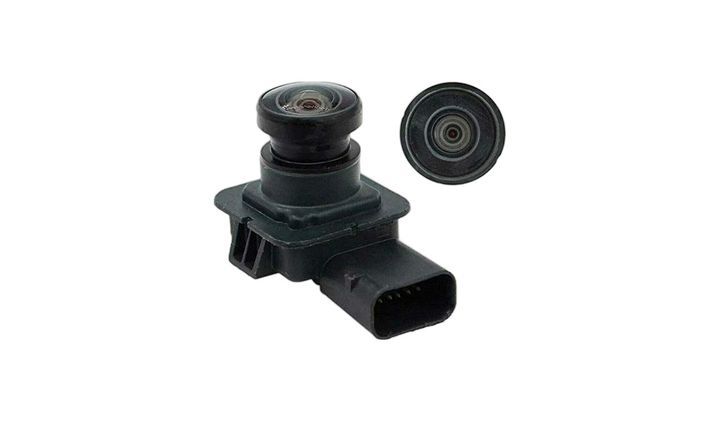

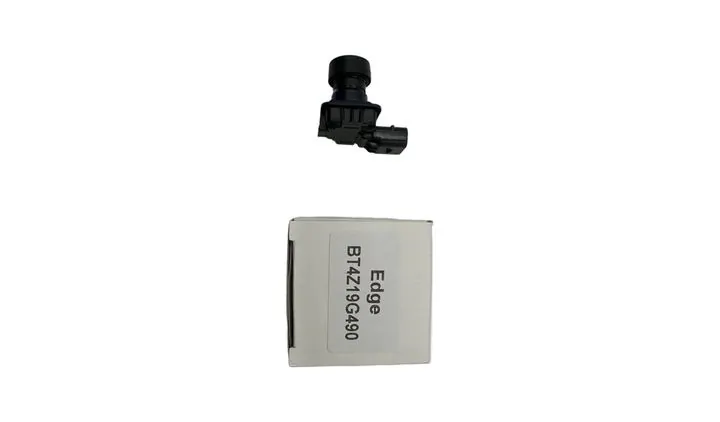

Main image and detail shots of the BT4Z-19G490.
BT4Z-19G490 Ford Edge / Lincoln MKX factory rearview camera (2011-2013)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
BT4Z-19G490 datasheet — full specification, ordering notes and installation guidance as a PDF (266 KB). Open it here or ask us to email it with your quotation.
Key features
- [It can be used when matching OE] OE: BT4Z-19G490-A / BT4Z-19G490-B | Model: Ford Edge 2011-2013, Lincoln MKX 2011-2013 | Location: Rear view reversing camera. If the OE number is consistent, it can be directly replaced. Before placing an order, please provide the factory harness camera photo for verification
- Ford Edge/Lincoln MKX factory rearview camera, OE BT4Z-19G490-A/-B, 2011-2013
- The same part number covers both Ford and Lincoln models
- Sensor: 1/4" CMOS active pixel array, Nidec glass + plastic lens
- Minimum illumination 0.1Lux, effective pixels 728×582, 600 TV lines
- Viewing angle 170°, standard NTSC / PAL, electronic shutter 1/50~1/100,000 seconds
- Waterproof to IP68, power supply DC 6~12V
- The factory harness plug is connected, no wire cutting, the appearance is matches the factory part
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Ask the customer for photos of the factory camera — front, back, plug, bracket and the OE label on the housing — and check them against ours one by one.
- Check the OE number BT4Z-19G490-A / -B, different suffixes may correspond to different years, confirm word for word
- Confirm model (Ford Edge or Lincoln MKX) and model year 2011-2013
- Confirm the camera position — reversing view, or which channel of the 360 system.
- Confirm quantity, packaging and printing.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Disconnect the battery negative terminal before installation and keep the circuit unpowered while working.
- When removing original parts, protect the clips, seals and plugs — do not force them.
- After fitting, check the clips are fully seated and the seal is compressed so water cannot seep in.
- Power up and check the reversing image and the factory guide lines work correctly.
- When washing, do not hold a pressure washer directly on the camera or connector.
- Keep the original parts you removed.
