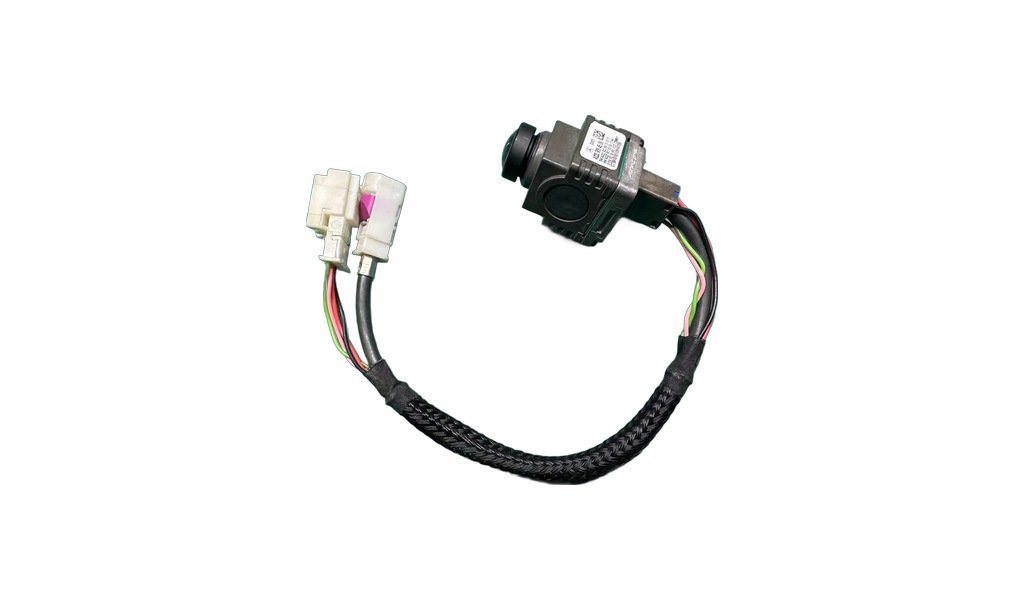

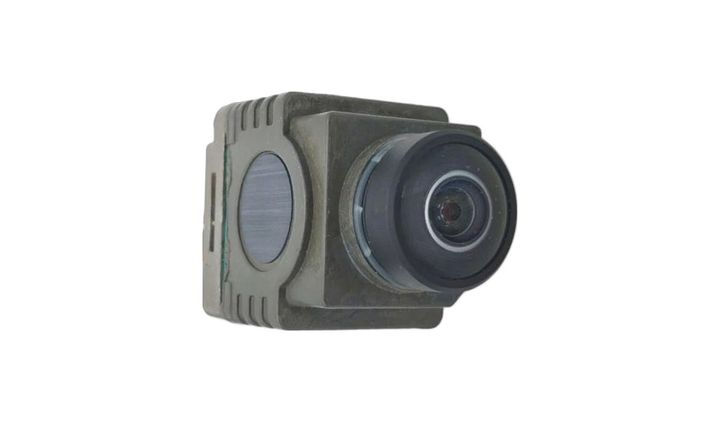

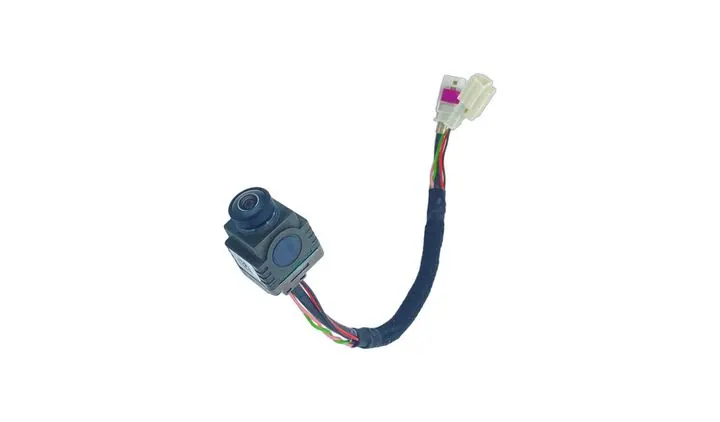

A2229054509 Mercedes-Benz factory rear view/surround view camera (W205/X253/C253/W222/W447)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
A2229054509 datasheet — full specification, ordering notes and installation guidance as a PDF (274 KB). Open it here or ask us to email it with your quotation.
Key features
- [It can be used when matching OE] OE: A2229054509 | Car model: Mercedes-Benz C-Class W205, GLC X253 / C253, S-Class W222, V-Class W447, 448 | Position: rear view / 360 look around a certain road. If the OE number is consistent, it can be directly replaced. Before placing an order, please provide the factory harness camera photo for verification
- Mercedes-Benz factory camera, OE A2229054509
- Covers C-Class W205 (2016-), GLC X253/C253 (2016-), S-Class W222 (2016-), V-Class W447 (2009-), 448 (2017-)
- Factory plug connection, no wire cutting
- The appearance is matches the factory part, and the installation position and angle are the same
- Sealed housing, rainproof, resists mud and pressure washing
Ordering notes
Points to confirm before production so the unit arrives ready to fit.

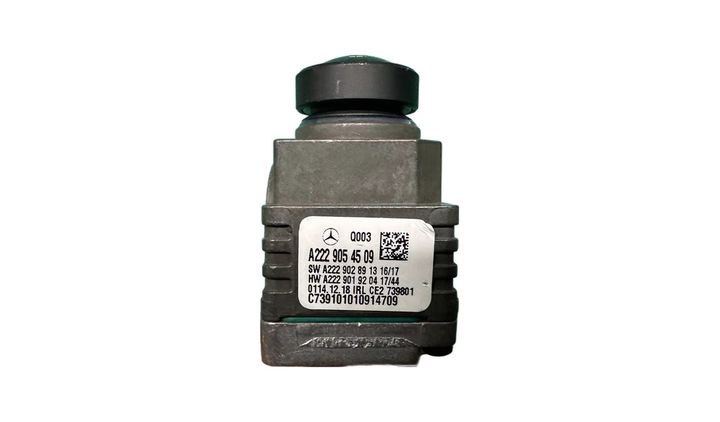

- Ask the customer for photos of the factory camera — front, back, plug, bracket and the OE label on the housing — and check them against ours one by one.
- Check that OE number A2229054509 is exactly the same
- Confirm chassis code (W205/X253/C253/W222/W447/448) and model year
- Confirm which side of the 360 panorama it is (front/back/left/right), the part number is often different in different locations
- Replacing a 360 camera normally requires calibration with a diagnostic tool — confirm the customer has the equipment.
- Confirm quantity, packaging and printing.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Disconnect the battery negative terminal before installation and keep the circuit unpowered while working.
- When removing original parts, protect the clips, seals and plugs — do not force them.
- After fitting, check the clips are fully seated and the seal is compressed so water cannot seep in.
- Power-on test screen and factory auxiliary functions, the 360 version needs to be calibrated
- When washing, do not hold a pressure washer directly on the camera or connector.
- Keep the original parts you removed.
