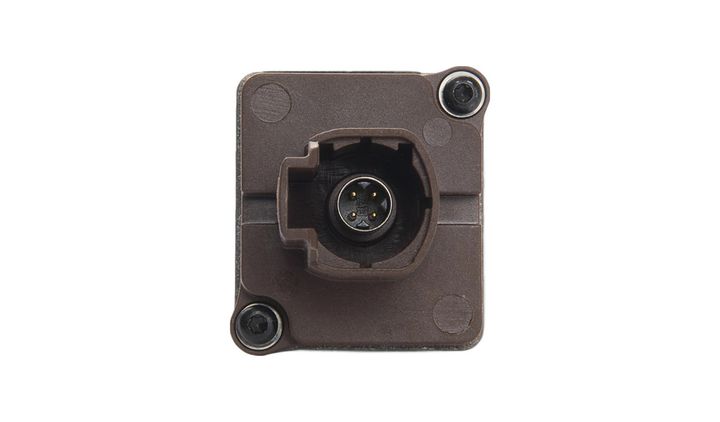

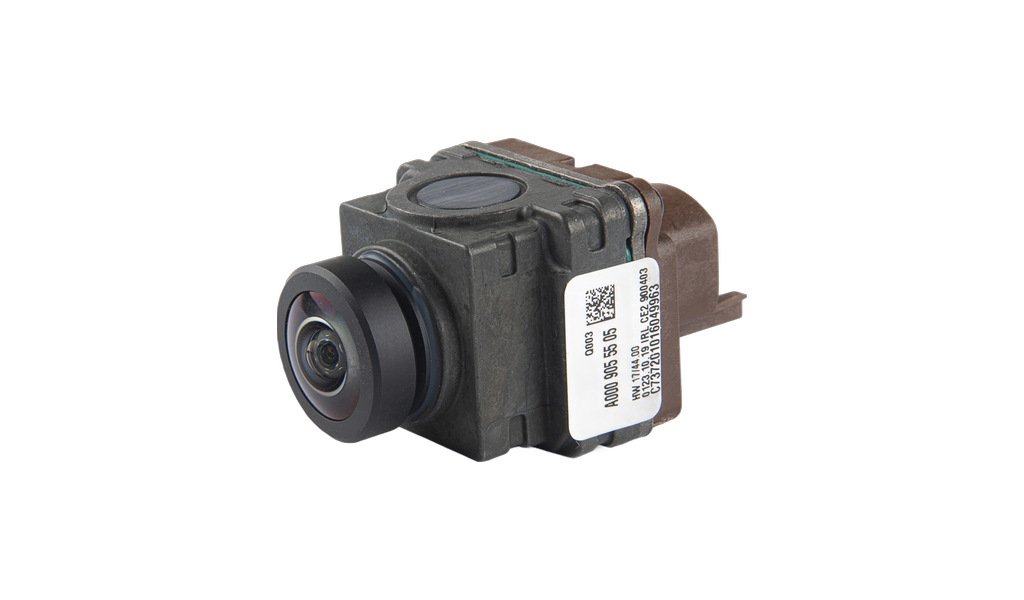

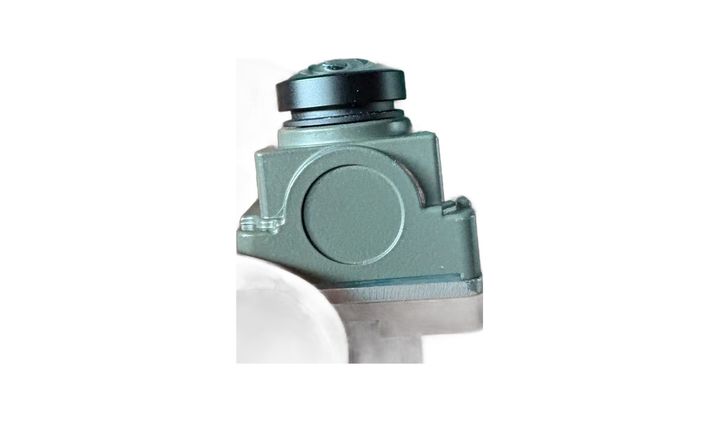

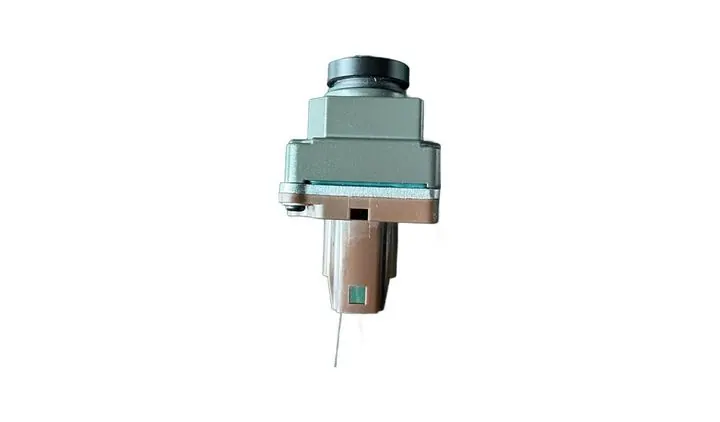

Main image and detail shots of the A0009055606.
A0009055606 Mercedes-Benz factory 360 panoramic camera
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
A0009055606 datasheet — full specification, ordering notes and installation guidance as a PDF (307 KB). Open it here or ask us to email it with your quotation.
Key features
- [It can be used when matching OE] OE: A0009055606 | Model: Mercedes-Benz 360 panoramic view (similar to A0009055505 / 6206 / 6306, of which A0009055505 corresponds to A / B / G / GLC / CLA / GLE) | Location: 360 panoramic view on a certain road. If the OE number is consistent, it can be directly replaced. Before placing an order, please provide the factory harness camera photo for verification
- Mercedes-Benz factory 360-degree panoramic camera, OE A0009055606
- Part number of the same family: A0009055505 / A0009055606 / A0009056206 / A0009056306, selected according to vehicle model and location
- Factory plug connection, no wire cutting
- The appearance is matches the factory part, and the installation position and angle are the same
- Sealed housing, rainproof, resists mud and pressure washing
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Ask the customer for photos of the factory camera — front, back, plug, bracket and the OE label on the housing — and check them against ours one by one.
- Check OE number. Four part numbers of the same family correspond to different models/positions. It is most easy to get the wrong part number. Be sure to check it word by word
- Confirm the model (A / B / G / GLC / CLA / GLE, etc.) and year
- Confirm which side of the 360 panorama it is (front/back/left/right), the part number is often different in different locations
- Replacing a 360 camera normally requires calibration with a diagnostic tool — confirm the customer has the equipment.
- Confirm quantity, packaging and printing.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Disconnect the battery negative terminal before installation and keep the circuit unpowered while working.
- When removing original parts, protect the clips, seals and plugs — do not force them.
- After fitting, check the clips are fully seated and the seal is compressed so water cannot seep in.

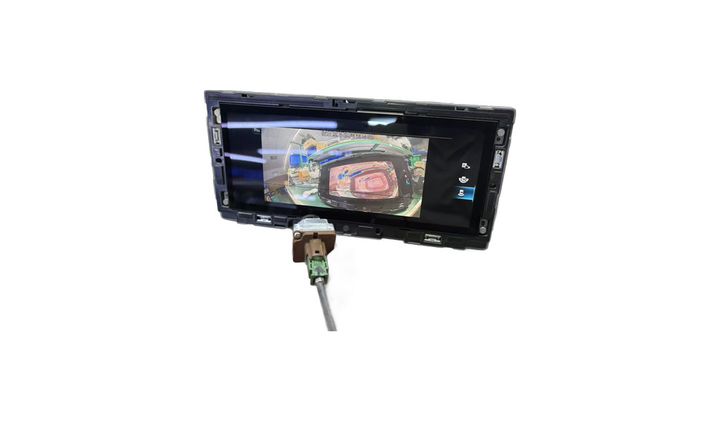

- Power up, check the 360 image and calibrate, confirming the stitch is aligned.
- When washing, do not hold a pressure washer directly on the camera or connector.
- Keep the original parts you removed.
Specification guides for this kind of product
Written by our engineers for buyers comparing specifications, not slogans.
Camera Sensor Guide: 2053, 8536H, 307 — What the Chipset Numbers Mean
How to read a vehicle camera datasheet: sensor size, what chipset numbers such as 2053, 8536H and 307 actually mean, lens construction, WDR and IR-CUT filters.
How to Choose a Truck Camera: The Complete Buyer's Guide
A practical guide to specifying commercial vehicle cameras: position, resolution, viewing angle, night vision, waterproof rating and connector type.
