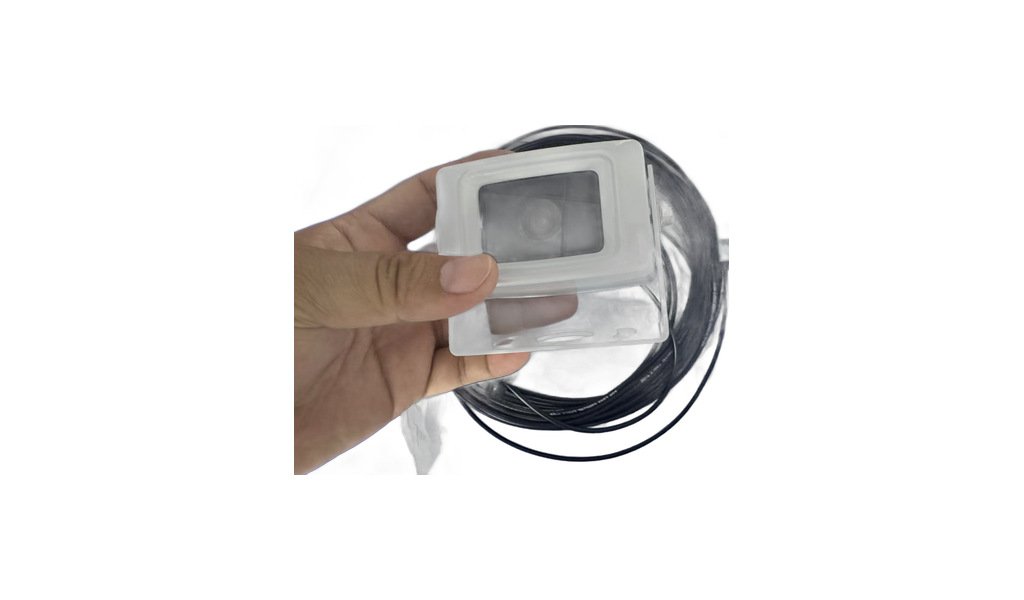

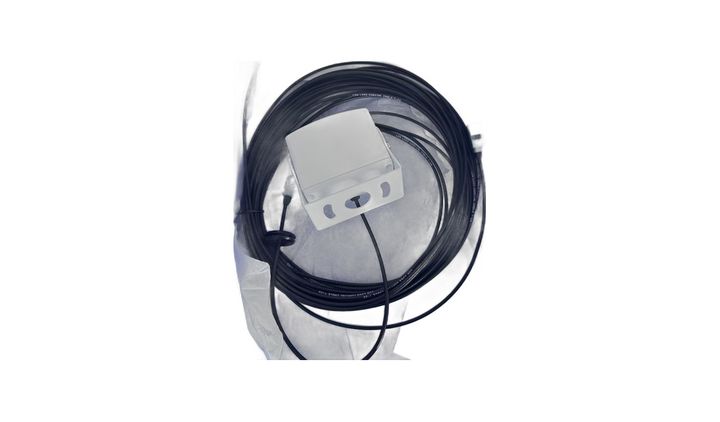

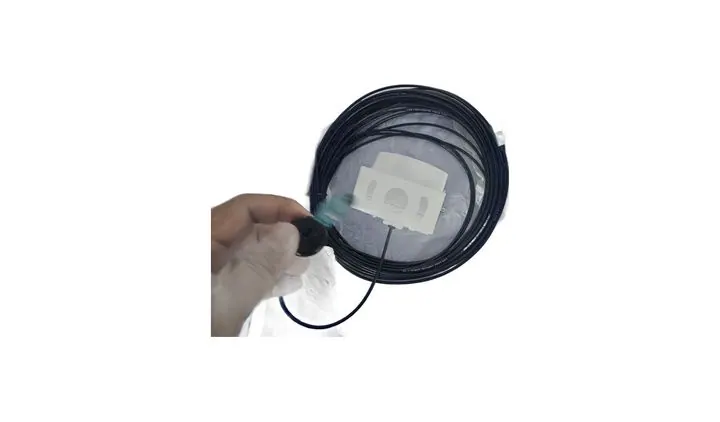

JPC-139-LVDS truck/bus LVDS digital camera (LVDS digital output/18 lights/IP69K)

Key features

LVDS digital video output (Low Voltage Differential Signalling) - the digital interface used by factory-fitted monitors and OEM head units
Low-latency digital transmission: the image goes from camera to display in real time, with no analogue smear or ghosting on the screen
Strong anti-interference: the differential signal stays clean in a vehicle's noisy electrical environment (alternator, motors, LED lighting) - this is where LVDS beats CVBS / AHD
Long cable runs on ordinary shielded cable - the digital signal does not soften like analogue video over 10-30 m, so the camera can sit at the back of the trailer while the monitor stays in the cab
Plug and play with displays / MDVR that have an LVDS input - one cable, no converter box (the interface must match the monitor)
Built on the JPC-139 platform: 1080P high definition, 110 degree wide angle, 0.1 Lux low light
18 pcs IR LEDs with auto IR-cut, night vision distance 10 m
Full metal housing, IP69K waterproof - stands up to high-pressure and steam cleaning on bus wash lines
Working temperature -20°C to +70°C; shock and vibration resistant for commercial vehicle use
Connector matched to the vehicle: 4-pin aviation / waterproof mini 4-pin / USB / custom ends on request
Dual-shielded cable available for extra protection against electromagnetic interference in complex vehicle electrics
For buses, coaches, trucks, trailers, school buses and fleet / MDVR systems

Points to confirm before production so the unit arrives ready to fit.

There is no original datasheet on file for this model, so resolution, angle, voltage and IP rating are subject to factory confirmation. Request the datasheet before ordering.
Confirm the display interface: LVDS is a digital differential signal and must be equipped with a monitor/host with LVDS input. It cannot be connected to ordinary AHD/CVBS input
Confirm whether the LVDS interface definition (pins, channel number, line sequence) matches the display; it is best to provide the display model or interface diagram
Confirm the resolution and format: 1080P / PAL by default, 720P and NTSC are optional, and must match the monitor / MDVR

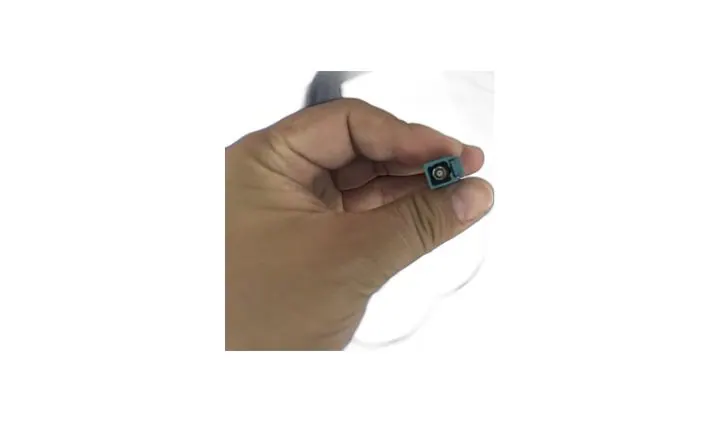

Confirm the connector type Fakra and the wire length (default is 0.5m tail wire, double shielded wire is recommended for long wires)
Default specifications: LVDS digital output / 1080P / PAL format / mirror image, without reversing auxiliary line (no park line)
Confirm whether you need shielded extension cords, waterproof covers and fixed brackets
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
LVDS is a differential pair. The wiring should be routed in pairs to avoid running in parallel with high-voltage lines/motor wiring harnesses. The connectors should be inserted into place and locked
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
LVDS is a digital signal and cannot be mixed with ordinary AHD / CVBS. If you plug it in wrongly, there will be no image
Tighten the screws once the angle is set.
IP69K covers water jets and immersion; when washing, do not hold a pressure washer on the lens or connector.
