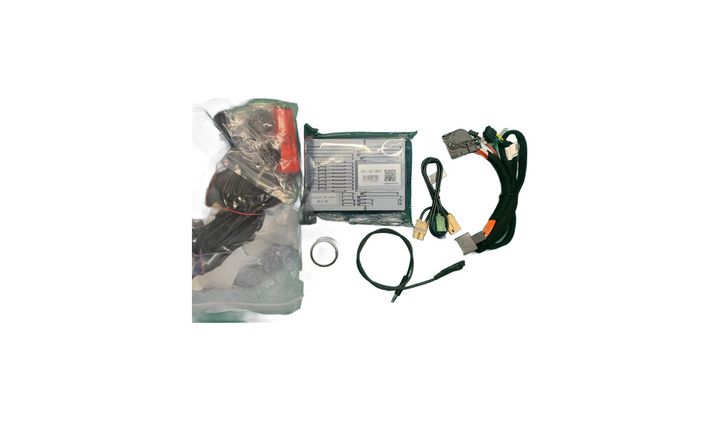

Main image and detail shots of the HCJ Decoder All-in-One.

Integration · Interface

HCJ Decoder All-in-One

All-in-one decoder module (Luxury Carmaker 100PIN / OEM 360 Bird View System)

Key features

[Exclusively for special cars] After confirming the three items of car model + year + factory screen, pair the cable package and dial code, plug it in and go
Install a camera image on the factory harness screen without changing the screen or touching the factory harness system
Supports reversing image, front view, left and right side view, 360 panoramic access, and direct display on the factory harness screen
Retain factory functions: multiple models support factory radar, reversing trajectory, gear position, turn signal, vehicle speed, door, and P key information
Some models support touch operation on the factory harness screen; models with recorder switching function can long press the factory harness button to enter the recorder screen
LVDS lossless transfer: the factory harness host LVDS plug is connected to the decoder LVDS-OUT, and the adapter cable is plugged back into the host without breaking the line
Host models and covered car series (see the car model table in the catalog for details)
The same series also has a complete set of model tables (including dial codes, support functions, and wire package numbers), which can be quickly selected according to the table

Points to confirm before production so the unit arrives ready to fit.

Model/year/factory screen (size, system version, host model) - these three items must be confirmed by the customer. They are only for special cars and cannot be used for error-reported models
Confirm the characteristics of the factory harness screen: screen size, with or without navigation, with or without touch screen, whether it is a vertical screen / upper and lower dual screens, and which brand of host is it (BOSCH / Harman / Denso / Panasonic / Harman, etc.)
Confirm the functions you want to access: reversing image/front view/side view/360 panorama/recorder switching/CarPlay
Confirm the wire package number (Mxx-xx) and the dialing setting. We will specify it according to the car model table. Customers should not change the dialing code before installing the car
Confirm whether the recorder switching function is required (some models support long pressing the factory harness button to enter)
Confirm whether there are vehicle inspection requirements in the customer's local area (some models claim to be able to pass vehicle inspection, subject to local policies)
Confirm whether a camera, extension cable and bracket are required.
The quantity is small and it is only for special vehicles. After confirmation, it is recommended to prepare the wire package at one time to avoid secondary replacement
Confirm quantity, packaging and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

All disassembly and assembly processes must be powered off and the factory harness interior must be protected
Fixed LVDS connection method: unplug the factory harness host LVDS plug and insert it into the decoder LVDS-OUT, and plug the decoder’s LVDS-IN adapter cable back into the factory harness host
Before powering on, check the DIP switches and wiring harness connections again to confirm that they are correct before powering on
When using Denso/Bosch and other original OEM models, disassembly and assembly must follow the order of the instructions (first pry the panel, then remove the screws), do not pry hard
Car models that support the recorder: Turn the dial code 6 to ON to turn on the recorder function, then follow the instructions and long press the factory harness button to enter
After installation, test the factory harness functions one by one: reversing, radar, air conditioning, steering wheel buttons, touch, and factory navigation
Keep the removed factory wiring harness and accessories for easy restoration and warranty
Route and secure the cable clear of hot surfaces and airbag zones.
