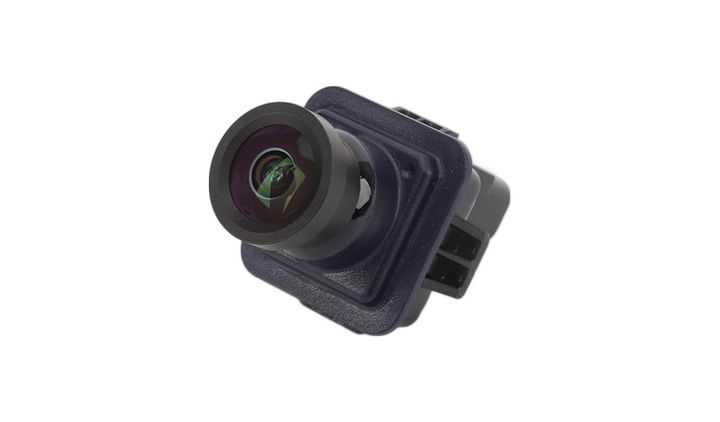

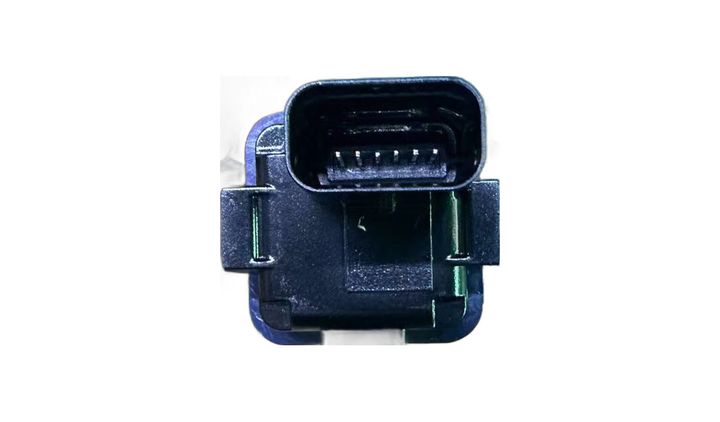

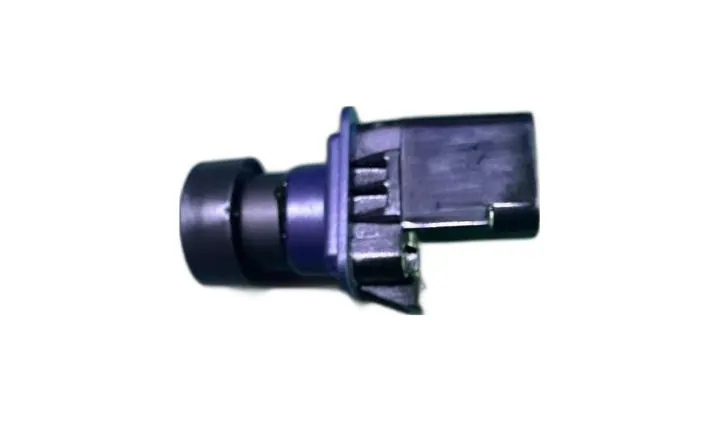

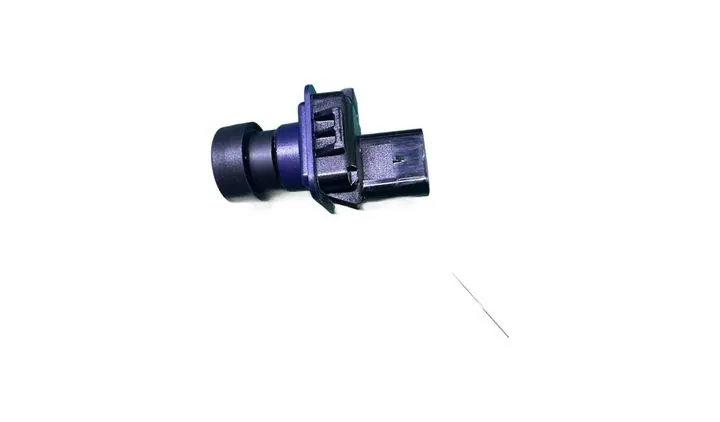

Main image and detail shots of the EL3Z-19G490-D.

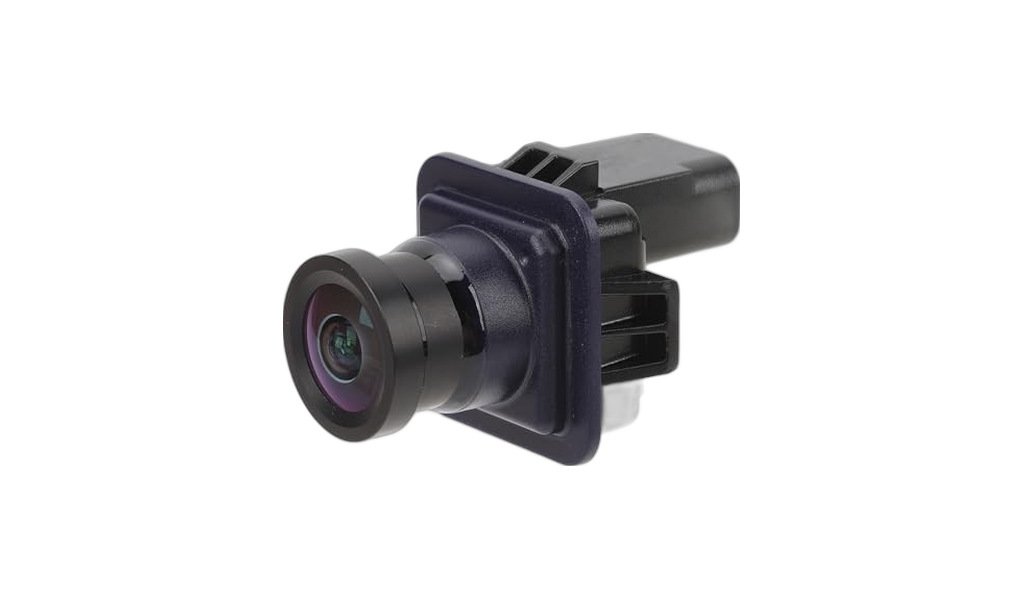

EL3Z-19G490-D Ford Mustang factory rearview camera (2015-2020)
Key features
- [It can be used when matching OE] OE: EL3Z-19G490-D (also written as EL3Z19G490D) | Model: Ford Mustang 2015-2020 | Location: Rear view reversing camera. If the OE number is consistent, it can be directly replaced. Before placing an order, please provide the factory harness camera photo for verification
- Ford Mustang factory rearview camera, OE EL3Z-19G490-D, exclusive for 2015-2020 models
- Common specifications for US series: 1/4" CMOS active pixel array, Nidec (Japan) glass + plastic lens
- Minimum illumination 0.1Lux, effective pixels 728×582, 600 TV lines
- Viewing angle 170°, standard NTSC / PAL, electronic shutter 1/50~1/100,000 seconds
- Waterproof to IP68, power supply DC 6~12V
- The factory harness plug is connected, no wire cutting, the appearance is matches the factory part
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Ask the customer for photos of the factory camera — front, back, plug, bracket and the OE label on the housing — and check them against ours one by one.
- Check that the OE number EL3Z-19G490-D is completely consistent (note the -D suffix at the end, Mustang also has other suffixes such as EL3Z-19G490)
- Confirmed model is Mustang 2015-2020
- Confirm the camera position — reversing view, or which channel of the 360 system.
- Confirm quantity, packaging and printing.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Disconnect the battery negative terminal before installation and keep the circuit unpowered while working.
- When removing original parts, protect the clips, seals and plugs — do not force them.
- After fitting, check the clips are fully seated and the seal is compressed so water cannot seep in.
- Power up and check the reversing image and the factory guide lines work correctly.
- When washing, do not hold a pressure washer directly on the camera or connector.
- Keep the original parts you removed.
