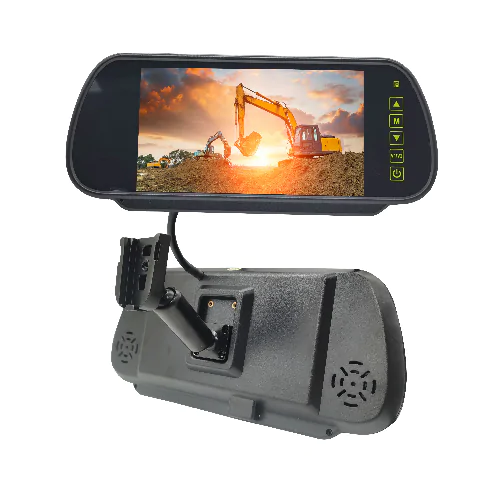

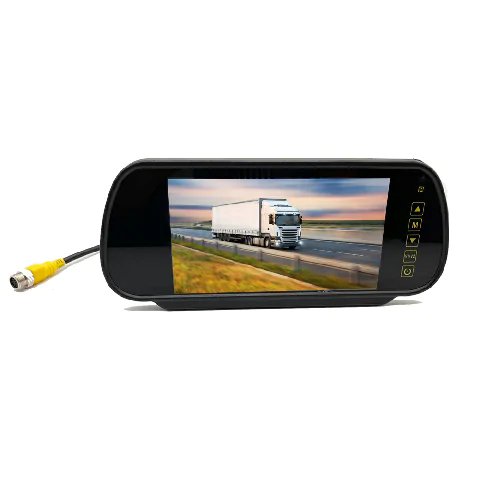

JPM-71D new design 7inch truck mirror monitor,electronic mirror ,vertical monitor（two kind bracket）
7″inch AHD vehicle mounted display（two kind bracket）
1.AV Resolution:1024*R.G.B*600,
2.Back Light Luminance：LED, 500-650cd/㎡
3.View angle: L/R:85°,UP:85°,down:85° degree
4.2 channel AHD video input, single image display,
5.support 720P/ 960P/1080P (Video Compatibility:（CVBS/ AHD)
6.Automatically switch to V2 when reversing,Reverse reference point
7.System:PAL&NTSC auto-switching
8.High-low voltage protection&short circuit protection
9.Working temperature:-20℃ to 70℃
10.Storage temperature:-30℃ to 80℃
Introducing our 7-inch Mirror Monitor, a versatile rear-view solution designed to enhance your driving experience with clear vision and advanced features.
Key Features:
- Anti-Reflective Clear Vision Rear View: This 7-inch LCD monitor features an anti-reflective clear vision rear-view mirror, providing a crisp and clear view of your vehicle’s rear.
- Automatic Rear View Display: Automatically switches to the rear view when reversing, ensuring safety and convenience while parking or maneuvering.
- Continuous Rearview Display: The rearview image can be displayed on the screen at all times, offering constant visibility of the rear surroundings.
- High-Resolution Display: With a resolution of1024*600, enjoy sharp and detailed images on a 16:9 aspect ratio screen.

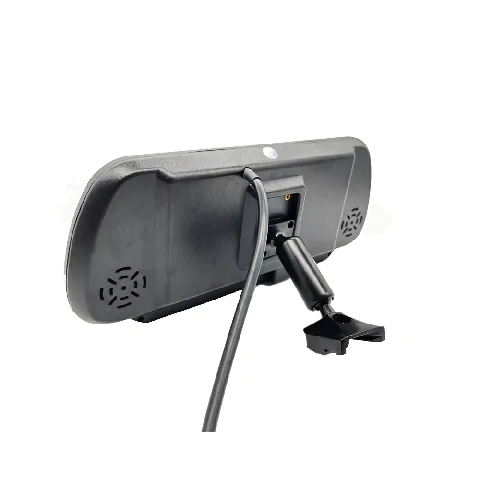

- Adjustable Mounting Bracket: Comes with an adjustable mounting bracket, allowing you to adjust the height for optimal viewing angle.
- Clip-On Design: Featuring pressurized clips, this 7-inch clip-on rear-view mirror monitor can be easily attached to any existing rear-view mirror, keeping your dashboard clutter-free.
- Thin and Sleek Design: With a thickness of just 1 inch, our monitor feels like an original rear-view mirror and blends seamlessly with your vehicle’s interior.

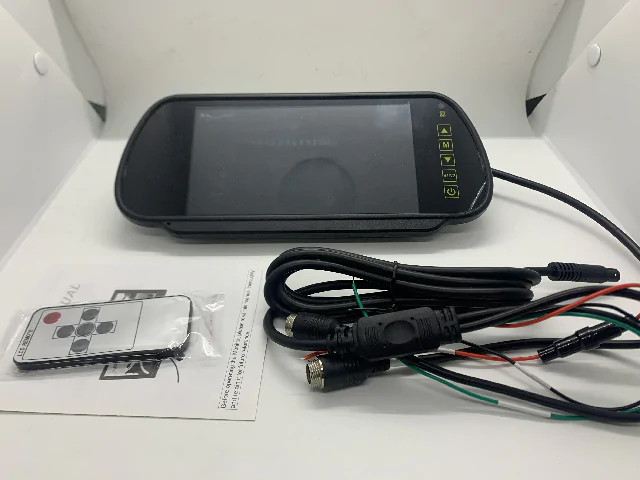

- Touch-Buttons and Remote Control: Equipped with touch-buttons on the monitor and a remote control for easy system control and adjustments.
- 2-Channel Support: Supports up to 2 video channels, allowing you to connect additional cameras for hitch monitoring, side-view cameras, and dash cameras.
- Wide Compatibility: Comes with both 4PIN aviation connector and RCA adaptor, ensuring compatibility with a variety of backup cameras.
- Compact and Lightweight: Dimensions of 9 x 4.5 x 1 inches (LxWxD) and weighs just 0.4kg, making it easy to install and handle.
- Low Power Consumption: Consumes only 5 Watts of power while delivering high-quality images, ensuring energy efficiency.

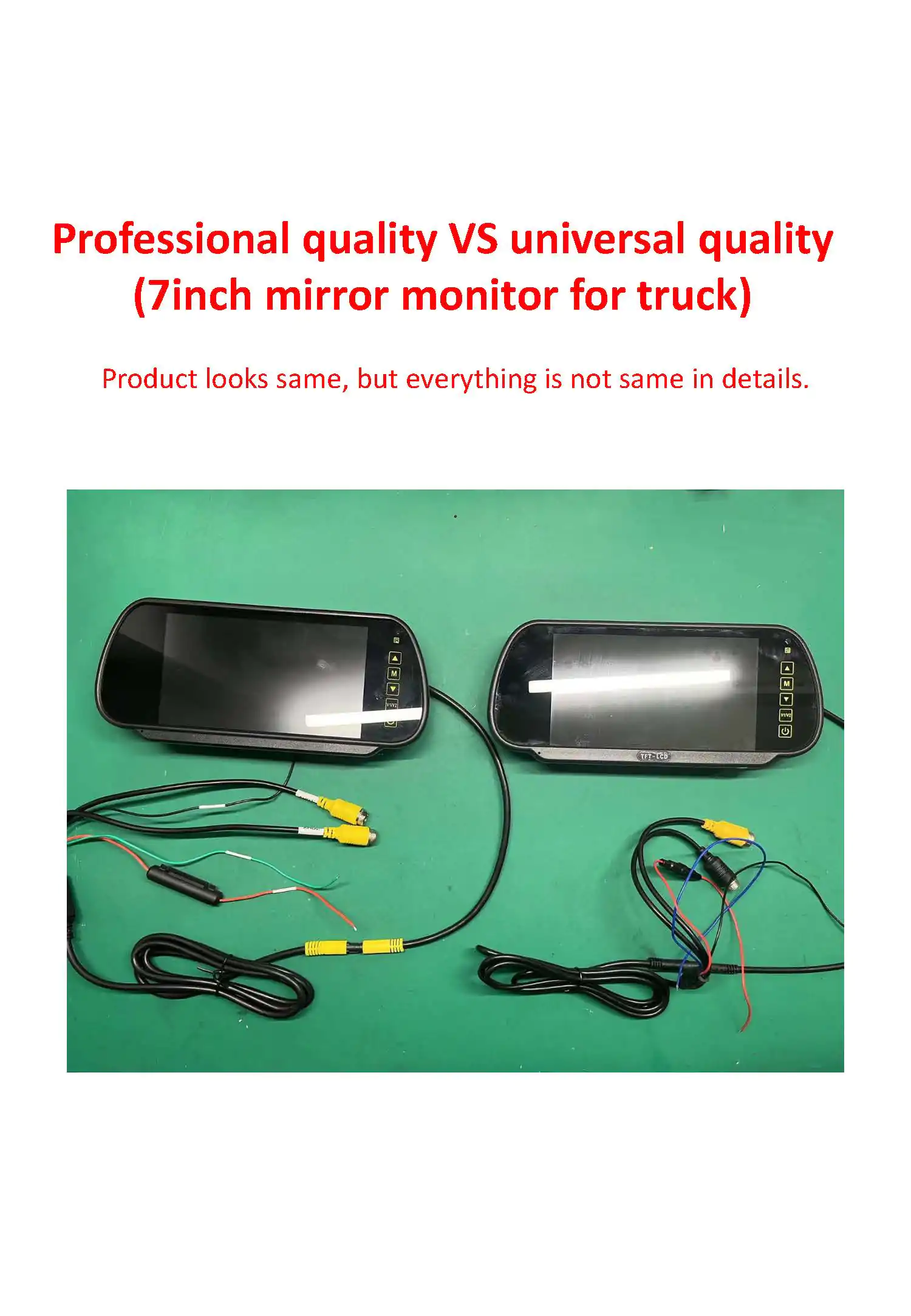

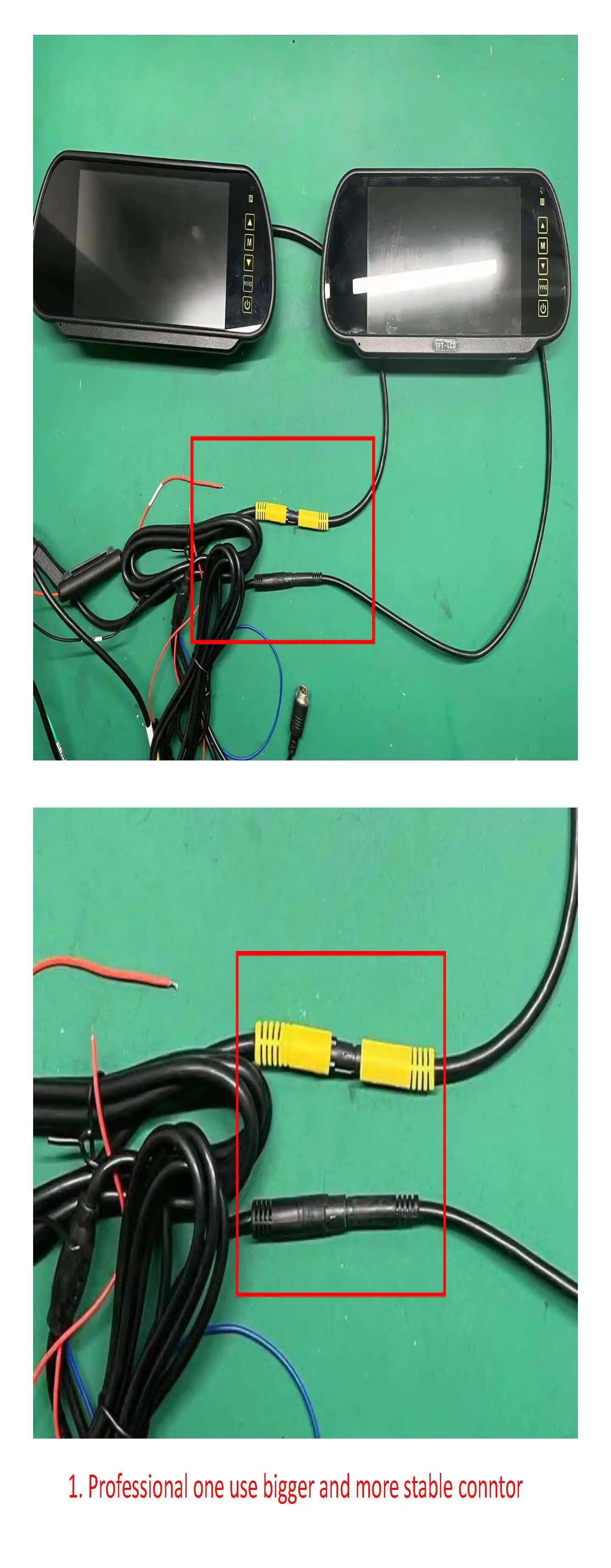

2.better quality VS universal quality(this is very important,compare with universal same model)
Additional information
| screen size | 7 inch |
|---|---|
| TV system | PAL/NTSC |
| Resolution | 1024*600 |
| Screen type | 16:9 |
| Contrast | 350:1 |
| Viewing angle | L/R:85°,UP:85°,down:85° degree |
| video | 2 channel AHD video input, single image display |
| video input | support 720P/ 960P/1080P (Video Compatibility:（CVBS/ AHD) |
| feature | High-low voltage protection&short circuit protection |
| voltage | Automobile storage battery (12-36V) ,12V output |
